Evasion
The Evasion, often imitated, never duplicated. The Satanic Rando. The DFL. The original Crust. Whatever you have or want to call it, its a bike that can fit a big ol' tire that doesn't ride like something thats been 6 feet under for that past 10 years. In terms of braze-ons the Evasion has everything you'd need to go for a tour around the world and back. If you're wondering which of our models is our go-to do-it-all bike, the Evasion is it.
Build Notes:
Don't forget to size up!
Designed around a 26x3" wheel and tire combo and thats its max 26" size. We've got 26x2.8" WTB Rangers Here
Word has it 26" is dead (It Ain't. Don't Fear Opulence.) so you will likely go with a 27.5" wheel. The max tire size there is going to be 27.5x2.8".
It can be setup 29", in which case your max tire size is going to be a 29x 2.0".
Takes a MOUNTAIN crank. Ideally 1x with a maximum ~40 tooth chainring. You can set it up 2x, but it's on you to figure that out.

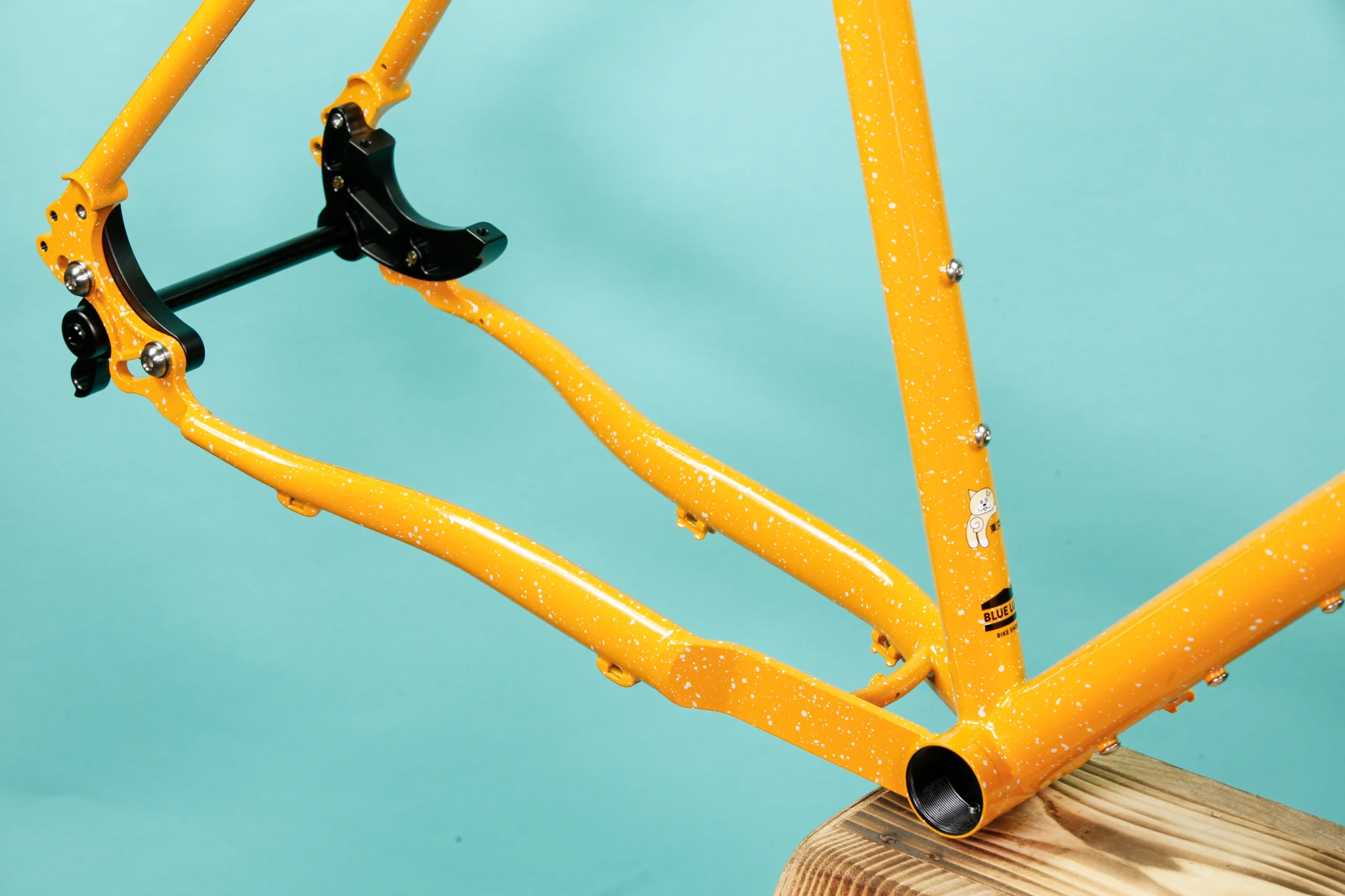

The rocker dropout's adjustability means it is Rohloff and single speed compatible. If you're looking for a dedicated single speed hub the Paul Word Hub is a good option. If you want to run a Rohloff, it's recommended to swap to slotted dropouts opposed to the Thru Axle dropouts.
Front brake is I.S. Mount and takes an adaptor to fit a caliper. The Rear brake is I.S. (Post Mount) as well, but you can bolt a caliper straight to the Rocker Dropout and clear a 160mm rotor. If you're struggling to find a brake setup, the Crust Palm Oil Brake Kit will help solve that problem.
Max Rotor Size: 203mm Front | 180mm Rear
Front and rear thru axles are included.
The painted frames are all ED Coated to help protect it from the elements and inhibit internal corrosion. This doesn't mean you're free to ride it into the ocean though.
Takes a 30.0mm seat post clamp with a 27.2 seat post.
Headset not included
If you need a seat post clamp we have some HERE!
Details:
Handmade in Taiwan using Heat Treated Chromoly
Tig Welded
Colors- Orange & Gray Speckle'd Blue Lug Special Edition | Galaxy Black
Sizes- Small 52cm | Medium 54cm | Extra-Medium 56cm | Large 58cm | Extra Large 60cm
Head Tube Diameter- 1 1/8" (Threadless Steerer)
Bottom Bracket- 73mm English (BSA) Threaded
Steerer Tube Length- 400mm
Axle To Crown- 385mm
Fork Spacing- 12x100mm
Rear End Spacing- 12x142mm
Front Axle Thread Pitch & Length- 1.5x125mm
Rear Axle Thread Pitch & Length- 1.5x173mm
Seat Post Diameter- 27.2mm
Weight (Large 58cm)- Frame- 2.66kg or 5lbs 14oz | Fork- 1.36kg or 3lbs
Some ideas for how to use the Evasion:
Original: $1,175.00
-65%$1,175.00
$411.25
